LAGOON 421

AU $625,000

Finance from only $ 00 per week

Length

41' 4" - 12.60m

Vessel Location

Sydney Harbour, NSW

Launch Year

2013

Hull Material

Fibreglass/GRP Infused balsa core composite hulls. Solid laminate below waterline.

Pre-Purchase Inspection

Description: Lagoon 421

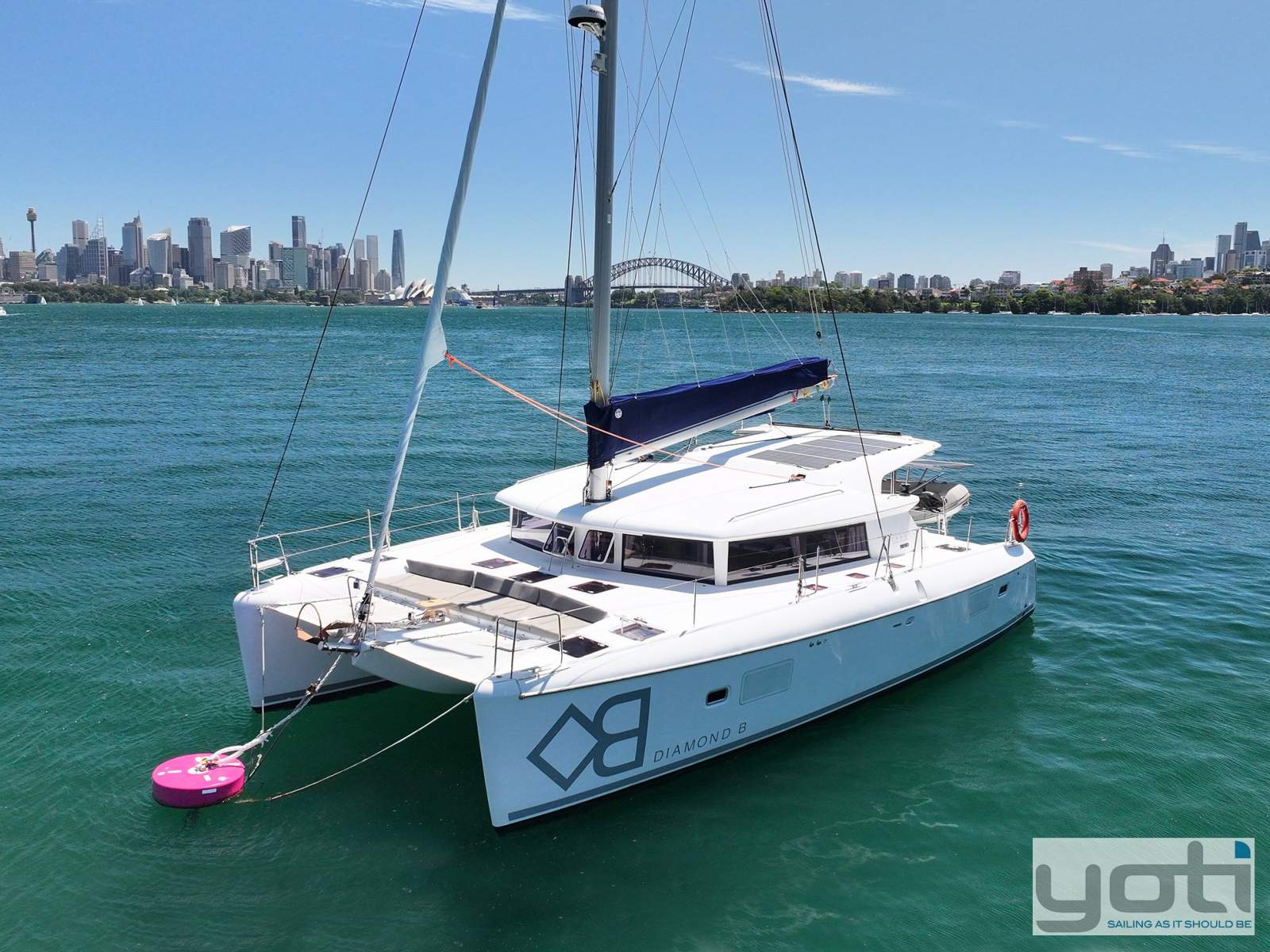

'Diamond B' is a beautifully presented 2013 Lagoon 421 that is now listed exclusively for sale with the team at YOTI in Sydney.

Significantly upgraded by her current owner since their purchase in 2020,'Diamond B' is now a very capable, safe, and self-sufficient Bluewater cruising catamaran. Her upgrades were designed to allow her owners to monitor and control her onboard systems remotely and achieve absolute 'off the grid' cruising capability.

Some of these improvements include the addition of a 4 x 200 a/h Victron Lithium house battery array, with Lynx Smart BMS, powered by 3 x 270W Solar Panels on an adjustable Stainless-Steel frame plus 4 x 185 SunMan eArc Solar Panel on her cabin top all controlled by 2 x Victron 150/85 MPPT smart solar controllers. In the past two years, she has also been fitted with a new inventory of Raymarine sailing instruments, which include 2 x Axiom 2 Pro plotters, 2 x i70 multifunction displays and only this year, a new Raymarine Evolution - EV1 course computer with P70s autopilot at her helm.

A 9.5Kw Onan genset helps run her full Cruisair air conditioning system, and a 120l/h Watermaker allows this Lagoon to be extremely self-sufficient. All her standing rigging was replaced in November 2023, and just for good measure, her running rigging was also replaced in June 2024.

She is powered by 2 x Yanmar 40hp diesels that were serviced in November 2024, and at the same time, she was antifouled and polished.

As the three-cabin owner version, the port hull is dedicated to the owners, with large heads and a standing shower in the bow, outstanding living areas and a huge master suite aft with a large island double berth. The starboard hull features two double cabins, both with an ensuite. Her spacious cockpit can seat eight around the dining table, and the large sliding door and window provide excellent access into the saloon. The helm is raised to starboard, which allows good all-round visibility while still being in full contact with the cockpit and close to the saloon.

'Diamond B' is located in Sydney Harbour and worth inspection. She is a beautifully presented and exceptionally well-specified Lagoon 421, now listed with YOTI. Don't hesitate to contact Tim Vine to discuss 'Diamond B' further.

Region

New South Wales

Vessel Location

Sydney Harbour, NSW

Reference

Diamond B

Launch Year

2013

Designer

Peteghem & Prevost

Builder

Lagoon Catamarans, France

Length

41' 4" - 12.60m

Beam

7.53m

Draft

1.26m

Displacement

12,300kg

Keel / Ballast

Mini Keels

Hull Material

Fibreglass/GRP Infused balsa core composite hulls. Solid laminate below waterline.

Deck Material

Balsa core composite deck and bridge deck.

Engine Make

Yanmar

Engine

Yanmar 3JH5CE Engine and genset Filters and Spares, Nov 2024 - annual haul out full service to engines, saildrive, generator. Engines enclosed in transom of hulls. Single off-set steering wheel on twin rudders. Emergency steering.

Number Engines

Horsepower

40Hp each

Fuel Type

Diesel

Engine Hours

2475

2nd Engine Hrs

2475

Propulsion

3-blade Flexofold folding propellors

Genset

Onan Genset 9.5kva (2920 hrs Nov 2024).

Fuel

2 x 300L rotomoulded tanks (600L total).

Water

4 x rotomoulded tanks (700L total).

Accommodation

Owners' cabin version. 3 Double cabins in total with dedicated ensuite head and showers. Large panoramic view saloon, seating for 8 around coffee table (re-upholstered 2021), interchangeable with large cockpit table. Spacious Galley to port with plenty storage and fridge/ freezer space. Substantial owners cabin to port with sofa and sliding door to saloon for privacy. Very large head forward. Large semi-Island berth in all three cabins. Owners cabin Flexima Nautic Mattress with slats underneath. Guest cabins Tri-foam mattresses with slats underneath.

Galley

Microwave, kettle, toaster, Dyson vacuum. Crockery and cutlery. 2 Gas bottles.
3 x Stainless steel sinks.
H+C Jabsco pressure water, fresh water filter. Fresh water Dock inlet. Deck wash pump sea/ fresh water.

Refrigeration

Isotherm fridge (130L) in cockpit. Vitrifigio fridge (130L) in galley. Vitrifigio drawer fridge/freezer (150L) in saloon.

Stove

Eno 3 Burner cook top and Eno oven and grill.

Hotwater System

40L hot water tank - heated by engine, inverter or generator/shore power.

Shower

3 x H+C Internal enclosed showers and 1x hot and cold cockpit shower.

Toilet

Quiet Flush Electric toilets. Holding tanks 2 x 80L. Servicing 3 toilets. Deck fittings for Pump out.

Entertainment

32" Smart TV (New 2021), TV antenna with booster. Fusion UD 650 Sound system with saloon (4) & cockpit speakers (2).

Air Conditioning

Cruisair Air conditioning to saloon & cabins (4 units total ) - 1 x 12000 BTU and 3 x 8000 BTU.

Dinghy

Highfield 3.4 M Rib (New 2017) - Alloy bottom with oars, anchor.

Outboard

Suzuki 4 stroke Outboard 15 hp (New 2017). Outboard hoist and mounting bracket.

Covers

Solid cockpit hardtop with side and aft clears. Rear cockpit sunshade, helm station canvas Bimini and sides. Lazy Jack bag.

Ground Tackle

Muir VRC 2200 Electric Windlass (New Jan 2024).
Mantus 38kg primary anchor with swivel and anchor rescue device collar. 110 m galvanised chain (New Nov '24). Mantus Anchor bridle. Secondary Danforth type 25kg Anchor with 50 m chain and 20 m warp.

Safety Gear

SeaSafe 8 pax ISO 9650 life raft (plus 24 hr pack, serviced 2020). 6 x PFD 150N auto inflate lifejackets, Solas lifebuoy float, telescopic Dan Buoy. Safety harnesses with tether lines, 2 x Jack lines. Bass Strait 18 - Para anchor with 100m nylon line. EPIRB 406MHZ incl GPS. First Aid kit, Fire Extinguishers, V-sheet, horn, mirror, wire cutter, fire blanket, climbing harness.

Bilge Pumps

2 x 12 v automatic electric - 1 Port, 1 Stbd. 2 x 12 v manual electric - 1 Port, 1 Stbd.

Electrics

Batteries: House batteries 4 x 200 a/h Victron Lithium ( 800 a/h in total - New Jun 2022) with Lynx Smart BMS. Engine batteries 2 x Gel 90 a/h (New Nov 2017). Generator battery 1 x Gel 90 a/h (New May 2021).
3 x 270W Solar Panels on an adjustable Stainless-Steel frame, 4 x 185 SunMan eArc Solar Panel on cabin roof (1550 W in-total). 2 x Victron 150/85 MPPT smart solar controller (New 2021). Victron 3KVA Multiplus II inverter/ 120 A charger (New 2021). 2 x Orion XS 50 A DC-DC Chargers (New 2024). Victron Cerbo GX with display (New 2021). 2 Heavy duty shore power cables. 12v Fans to Saloon( 2x) and Cabins (4x). LED interior lighting. LED Navigation lights.

Electronics

Raymarine Axiom 2 Pro (New Nov 2023) MFD at helm & Nav station, with Navionics charts. Raymarine - 2 x i70 Multifunction displays at helm and 1 x i70 at navigation station. Raymarine Evolution - EV1 course computer with P70s autopilot at helm and ACU-400 (New Jan 2024). Plastimo Compass. Raymarine AIS 700 Class B Transceiver (New Nov'23). Raymarine Quantum-2 doppler radar (New Nov'23). Raymarine CP100 CHIRP and downvision fishfinder and transducer. Anchor camera to helm station. 4 G Tektonika Router and Wi-Fi.
Raymarine 90 VHF with DSC, with extension handset to helm (New Nov 2023). Portable GME GX 850 VHF with DSC.

Sail Inventory

Fully battened Dacron Square Top Mainsail. Lazyjack bag with integral Lazy Jacks (Oct 2018). Genoa on furler. Gennaker on furler. Facnor furler x 2.

Mast / Rigging

Single spreader fractional rig. Sparcraft - Anodised aluminium boom. Stainless Steel rigging. 1x19 wire (replaced November 2023). Bowsprit. Spinnaker blocks and sheets. Running rigging replaced June 2024.

Deck Gear

3 x Harken 46 2-speed electric winches, 1 x Harken 46 2-speed manual winch, 2 winch handles and pockets. Pulpit with wooden seats (New 2018), Ferrari Mesh Trampolines (New 2018).

Remarks

Mooring lines and fenders. Weber 'BabyQ' BBQ (plumbed to gas tanks). Sun lounge cushions for foredeck, sun lounge cushions aft cockpit. Binoculars, navigation tools, handheld compass, freshwater hose, barometer, Water and fuel containers, various power tools, spanners, screwdrivers.
Antifoul November 2024.
