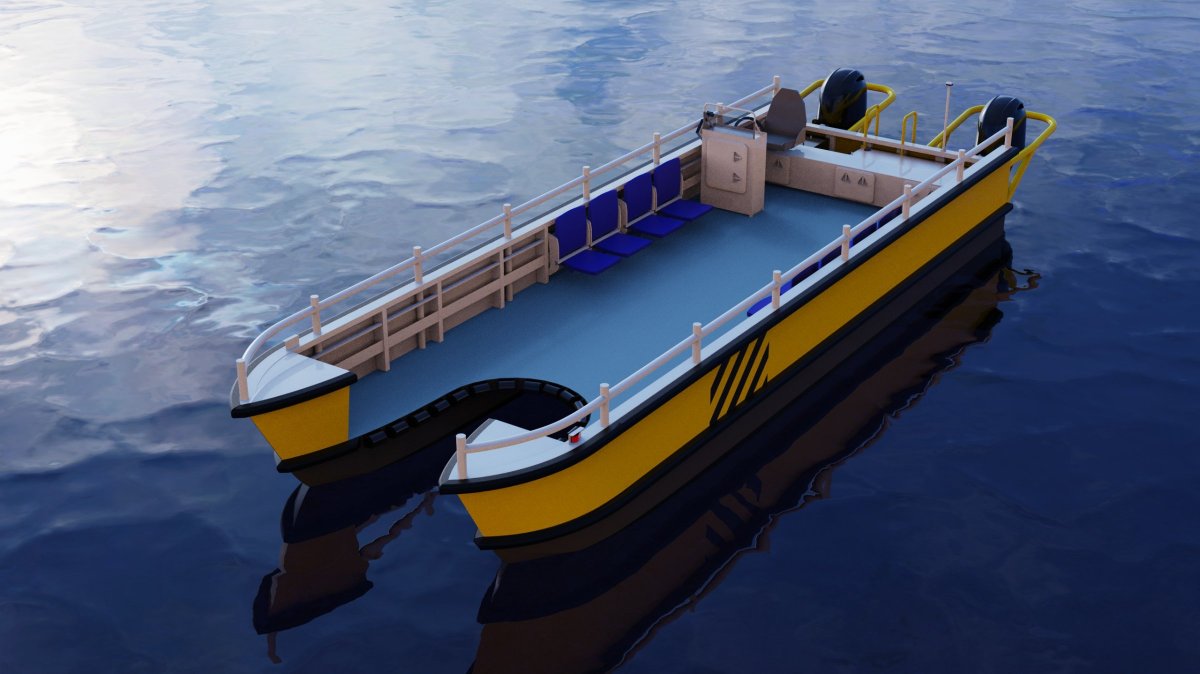

NEW SABRECRAFT MARINE WCP8500 - 8.50 METER CATAMARAN PILE/PYLON WORK BOAT

We are happy to announce a new design to the Sabrecraft Marine Work Boat Range!

With a 6mm deck plate the WCP8500 has been specially designed to cater for repair and maintenance of wharfs, jetties and bridges Australia wide!

The pylon cut out is 1200mm, giving it the ability to work on piles up to 1000mm wide and allow easy access to the pile at deck level. The opening is also fitted with rollers to reduce damage to piles while working

This vessel comes certified as AMSA 2C and has extra heavy-duty bollard / tie off rails down the full length of the vessel

Basic Specifications: WCP8500 - Work Cat Pile 8.50 meters
o Construction Material: 4/5/6mm Marine Grade 5083 H116 Aluminium
o Length OA: 9.90 meters
o Measured length: 8.50 meters
o Width OA: 2.90 meters
o Height OA: 1.40 meters
o Floor is Self-Draining
o 180lt aluminium fuel tank fitted into transom behind seat
o Lifting lugs fitted
o Heavy Duty Bollard/Tie Off Rail
o Lockable Storage Seat at rear
o Forward bow storage
o Painting: Inside white/outside your choice
o Twin Batteries with high amperage isolator switch
o Standard Navigation Lights
o Internal Rollers
o Side Console
o Side fenders top and bottom - Timber (Fitting onsite Australia)
o Engine Guard
o Antifoul
o Colour - Inside white, outside colour of choice from RAL colour chart
Price Including AMSA Survey 2C: $180,800.00 plus GST

Recommended Additions:
1. $2,400.00 - Safety Access Doors x 2 Port/Starboard
2. $2,650.00 - Canopy for Driver (3.00m x 3.00m)
3. $1,950.00 - 2 x 4 side seating (removable)
4. $5,850.00 - Commercial Navigation Package as below
o Sounder GPS Combo - Garmin Echomap UHD 95SV Combo 9-inch screen
o Marine Radio - Uniden UM355VHF VHF Radio & Aerial
o EPIRB
o AIS Class B

Recommended Motors:
2 x 90hp POA
2 x 115hp POA
$2,880.00 - Hydraulic Steering
$520.00 - SS Tie Bar

Recommended Trailer
Sabrecraft Smooth Ride WCPT-8500 Tri Axle
o Built to AS4177.3-2003-ADR-VSB1-Rev 6
o Rating: 3,500kg ATM
o Frame: Aluminium
o Coupling: 50mm Hydraulic with Breakaway System
o Axles: 3 x HDG - 2000kg rating each
o Suspension: Torsion Bar
o Brakes: Kodiac Disc to all wheels
o Wheels: Hot dipped galvanised
o Tyres: 6 x 14" 185R trailer rated
Price: $18,670 plus GST

Price shown does not include GST, this must be added where applicable

Aluminium Boating Specialists!
Sabrecraft Marine is truly a one stop shop for all your vessel design, certification and manufacturing needs. With our inhouse naval architects, AMSA approved surveyor, CE certified products and precision CNC, contact us today to discuss your next boating adventure!!
