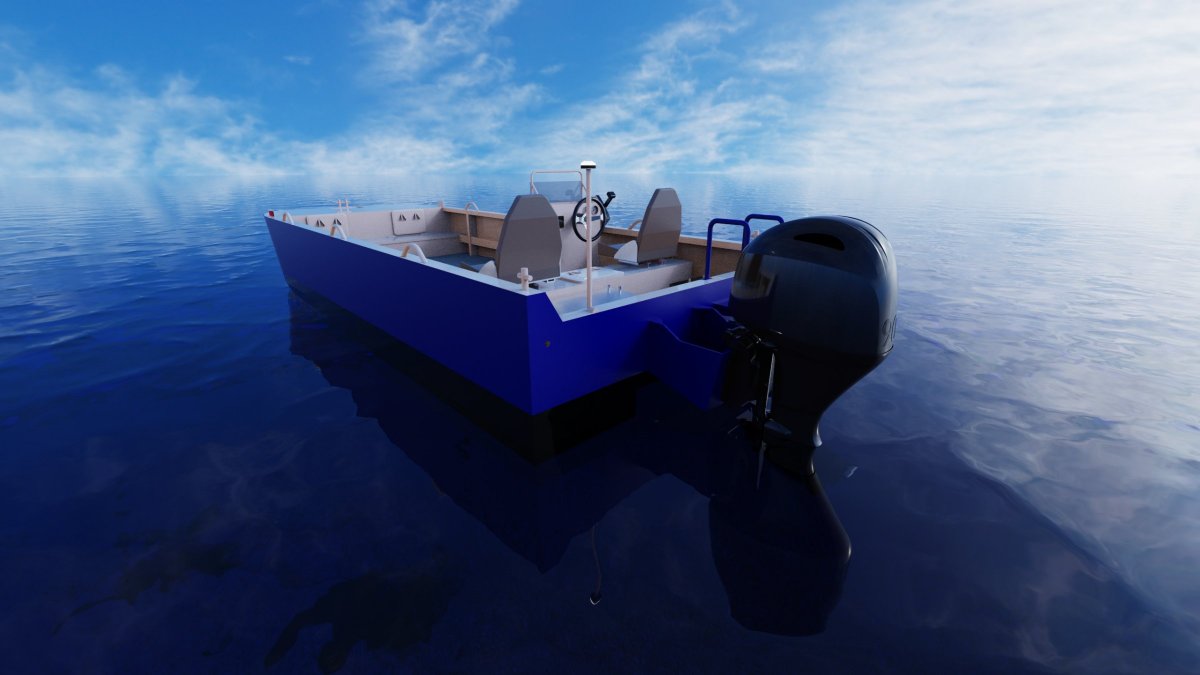

NEW SABRECRAFT MARINE WBC5900 - 5.90 METER WORK BOAT CATAMARAN

Sabrecraft Marine WBC5900 Catamaran Work Boat Punt Overview

*If not shown, GST must be added where applicable.

A new work boat in our range, available is now available in 3 sizes, WBC5900, WBC7400 and now the extra wide WBC7400-3 (3.00 meters wide). These are the best built Catamarn work punts on the market, as well as the best priced in Australia today

Bottom and Side Plate is 5mm with the Main Deck and Forward Deck, slot welded 4mm plate

In fact, everything about these boats are truly Heavy Duty, Bollards, Toe Holds, Grab Rails, Boarding Ladder, Covers for the Bilge Pumps, Fuel Tank, Lifting Lugs, Console and we are always looking to improve

The deck is self draining with 6 x scuppers fitted, 2 at the rear and 2 down each side

The paint is Marine Grade PU inside is White and the outside colour is your choice

These are Production Boats with stock normally always ready in the factory, on the water or in Australian holding yard Brisbane

These boats are designed to comply with AMSA Domestic Commercial vessel 2D with level floatation. The vessel can be used recreationally or at an additional cost can be put into survey.

Specifications WBC5900
Construction Material: 4/5mm Marine Grade 5083 H116 Aluminium
Length OA: 5.90 meters
Width OA: 2.20 meters
Height OA: 1.00 meters
Forward section fitted with bump fender
Gunwale Tie Down Rail: Full length
Deck Toe Hold: Full Length
Floor structure is double plate fully welded with 100x50 RHS longitudinals & cross bracing
120lt aluminium fuel tank fitted into transom behind seat
Lifting lugs fitted x 4
Forward bow storage with hatches
Navigation Lights: Forward
Deck is aluminium plate 4mm coated with non-slip rubber membrane
Approval: AMSA - Domestic Commercial Vessel
Motor: Maximum 200hp (not included)
Colour -TBA Client's choice, single colour
Batteries: Twin with high amperage isolator switch
Warranty: Structural 5 years - Fittings 12 Months

ADDITIONAL FITTINGS
Side Fenders (poly pipe) - Top Full Length: $740.00
Side Fenders (poly pipe) - Top Bottom Full Length: $740.00
Side Seating - Both sides: $1,950.00
Enclosed Sides: $4,670.00
Side Console: $980.00
Cable Steering + Whhel: $780.00
Heavy Duty Hydraulic Steering + Wheel: $2,880.00
High pressure deck wash and hose: $380.00
Gunwale Grab Rail - Both sides: $1,570.00
Motor Guard - $2,850.00
Canopy 1.50 x 2.30: $2,650.00
Canopy 3.00 x 2.30: $2,970.00
Canopy 4.00 x 2.30: $3,360.00
Canopy 5.00 x 2.30: $3,950.00
Canopy 6.00 x 2.30: $4,480.00
Ant-foul Hull and Sides 300mm - $880.00

Engines - Ask about Pricing
We stock Yamaha, Suzuki and Mercury

Trailers TWB5900 or TWB7400
Built to AS4177.3-2003-ADR-VSB1-Rev 6
Rating: 2,000kg
o Frame: Aluminium
o Coupling: 50mm Hydraulic with Breakaway System
o Axles: 2 x HDG - 2000kg rating each
o Suspension: Torsion Bar
o Brakes: Kodiac Disc on all wheels
o Wheels: Hot dipped galvanised
o Tyres: 14" 185R trailer rated
Price: $14,850 no rego

Aluminium Boating Specialists!
Sabrecraft Marine is truly a one stop shop for all your vessel design, certification and manufacturing needs. With our inhouse naval architects, AMSA approved surveyor, CE certified products and precision CNC, contact us today to discuss your next boating adventure!!
