2020 TAYANA 64 - New Boat Library

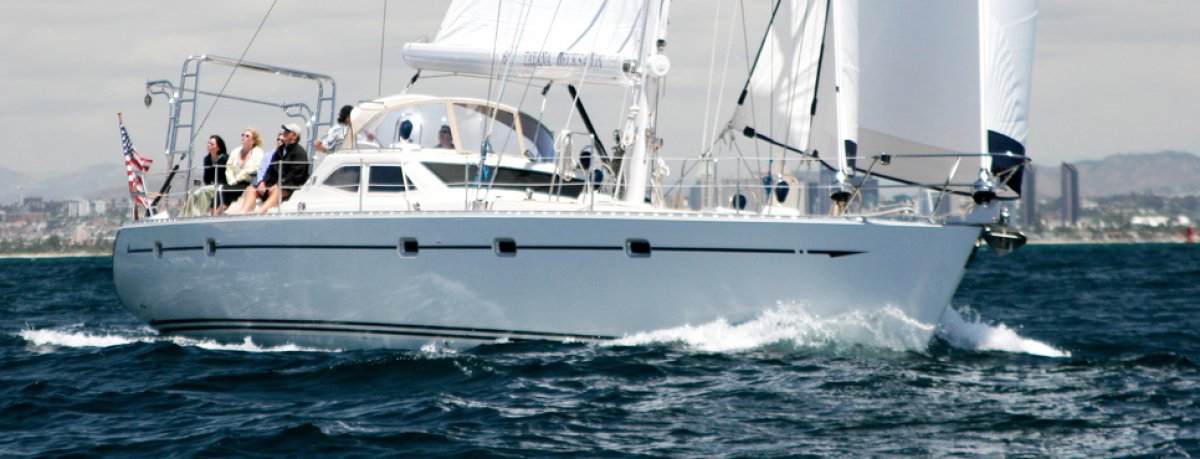

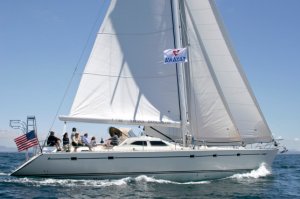

From Robb Ladd Yacht Design comes the new Tayana 64 Deck Saloon. Ladd has created a hull form with a wide beam at the deck with moderate beam at the waterline to provide spirited sailing performance and accommodate the raised saloon deck house most elegantly. Available in a variety of interior arrangements and alternate deck geometries.

DETAIL SPECIFICATION
SPARS, RIGGING & SAILS

Optional
AUXILIARY PROPULSION SYSTEM

Yanmar 4LHA-HTP 160HP (or equal)
Tp. 316 S/S shaft 1-3/4"
Tp. 316 S/S strut
3-blade propeller
Morse E02400 bearings
GRP water lock
Racor 500 MA fuel filter
Single lever shift & throttle control
Lasdrop shaft grand
Engine room blower
-G. R. P. Drip pan under engine
STEERING SYSTEM

Cable steering system
48" S/S steering wheel
Emergency tiller
ANCHORING SYSTEM

Maxwell VWC 3500 windlass, dual direction w/ remote control
S/S anchor roller ( excluding anchors )
Chain locker
Electric Power Source

A. C. 110V or 220V
- generator --- optional
- shore power receptacle 50A
- 110V outlet throughout
- 110V GFI outlets in heads
D. C. 12V
- engine start - 200 AH battery x 1
- genset start - 200 AH battery x 1
- house bank - 200 AH battery x 3
- Newmar battery charger (or equal)
DECK HARDWARES

Winches Lewmar ( or equal )
- 77CST x 3,77CST x 2
- 50CEST x 2,44CST x 2
Tracks & Travellers
- Main sheet system -Lewmar
a. Main sheet track
b. Main sheet track car
c. Main sheet track control end stop
d. Main sheet track single sheave control line
e. Main sheet track control line fairlead block
- Head sail system -Lewmar
a. Genoa track
b. Genoa car port side & starboard side
c. End stop
- Staysail system -Lewmar
a. Staysail track
b. Staysail car
c. End stop d. Staysail sheet lead block
Toe rail & stanchions
- GRP toerail - S/S stanchions, 1-1/4" dia
- S/S bow & stern pulpit
- S/S boarding gate both sides
- stainless steel ladder - Double life lines with gates
Hatches, Portlights, & Ventilators
- Hatches -Lewmar ( or equal )
- Portlights ( s. S. Or equal ) S. S. Opening portlights Lewmar Ocean series portlights on hull.
- Ventilators ( s. S. Or equal )
Other deck hardwares
- Cleats
Mooring cleats: s. S. 15" & 12"
- Foot blocks: Lewmar
- Main sheet fiddle block locates after end of boom
- Main sheet fiddle block on traveler car
- Main sheet lead block at boom
- Main sheet lead block on deck near mast
- Block upstand
- Mast collar lead block - Line organizers - Rope clutch
APPLIANCES

Refrigeration system: Grunert 115V system with built in fridge & freezer (4" isolation) (or equal)
Cooktop range w/ oven: FORCE 10 -61351 ( or equal), 3-burners with LPG solenoid switch & panel
Microwave oven: SEAWARD (or equal)
Desalenator, washder/dryer, trash compactor, ice maker, dish washer... Etc, are optionally available.
ILLUMINATING

Overhead lights: CANTALUPI "TEBE"
Reading lights: CANTALUPI "PATTY"
Hanging locker lights: Local 12V
Engine room light: s. S. Dome lights
Lazarette light: s. S. Dome light
Chart light: HELLA ( or equal )
Navigation light: Auqa Singnal
WIRING

Deluxe master panel
A/C ship/shore switch
D/C battery select switch

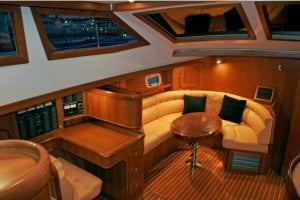

INTERIOR JOINERY

Satin varnished teak veneer bulkheads & lockers in staterooms and saloon
Corian countertop on inside of heads and galley
Teak planking on bare hull sides
Teak & holly cabin sole, teak grating in shower stall
Removable ceiling panels with vinyl headliner
Solid teak doors, fiddles, and trim plates
Schwepper door locks & latches ( or equal )
Dovetail join drawers
Sagasuni door latches
PLUMBING

Fresh water system - 12V water pressure system (or equal)
- 110V water heater (or equal)
- S/S sink & single lever faucet in heads
- S/S double sink & single lever faucet w/ sprayer in galley
- Foot pump in galley
Bilge system
- 12V electric bilge pump x 2, with floating auto switches
- Henderson double action hand bilge pump (or equal)
Gray water system
- 12V sump pump (or equal) in each sump tank - Head sinks discharge direct to overboard
- Galley sink drain discharge direct to overboard
Sanitary system - Raritan toilet (or equal)
- All toilet Y-connected to allow both overboard discharge and holding Tank collection
- Three suction holes on deck for each holding tank - Macerator pumps
Tank vents - Fresh water tank vents
- Holding tanks vent overboard
- Fuel tank & sump tanks vent through cockpit coaming
Raw water intake
- Main engine sea water inlet with adequate strainer
- Cooling water pump of refrigeration system has its own sea water inlet
- Sea water with strainer suppliers toilets
MICELLANEOUS

Fabric cushion for berths & sette
Electric ventilator in machinery compartment
Metal parts grounded and zinc protected
Tank tenders
Copper screens
1" lead & foam insulator with aluminum sound absorbing veneer surrounding machinery compartment
