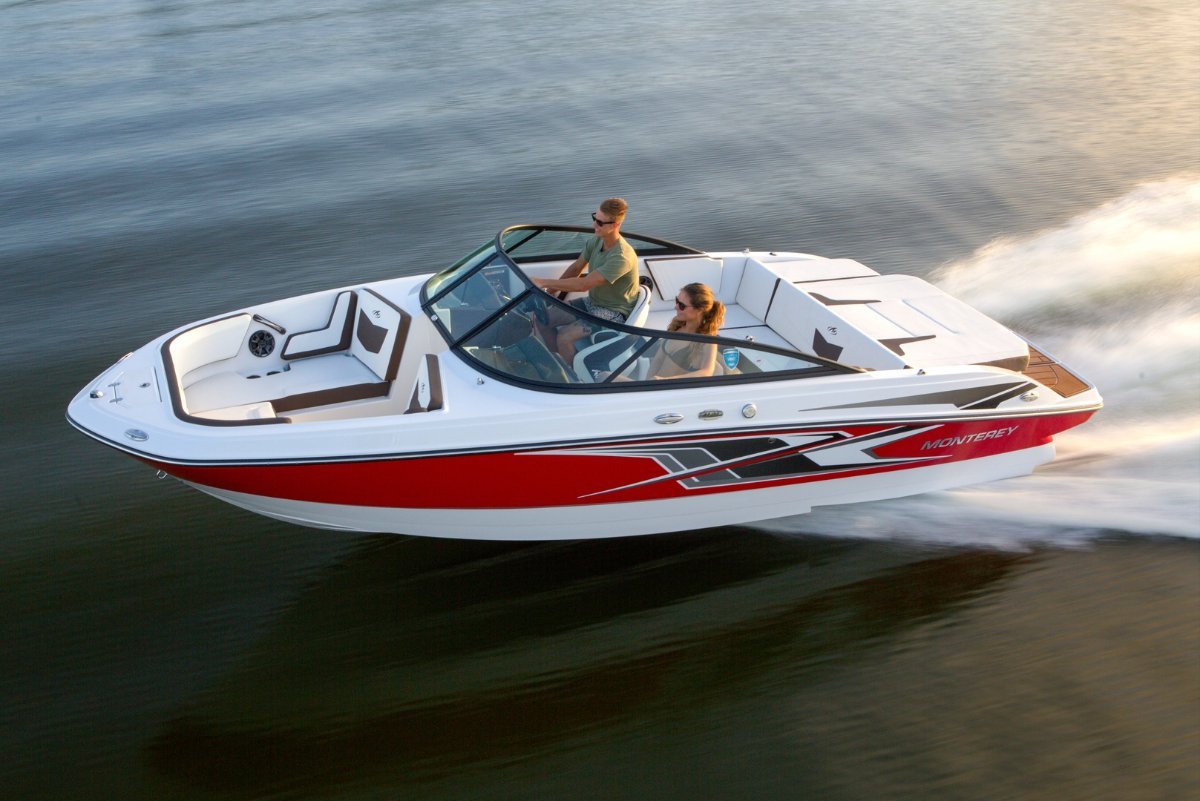

2019 MONTEREY M22

SPORTY & SPACIOUS
Our new M-22 features luxurious seating appointments and offers room for the entire crew. Equipped with an ergonomically-designed helm station featuring a fiberglass dash with upholstered visor, medallion digital instruments, MP3 adapter, and power assisted tilt steering; this boat is a captain's delight! Other amenities include a choice of 2 upholstery packages, Fusion Satellite Ready AM/FM USB Stereo with Bluetooth & 4 speakers and a 48-quart carry-on cooler.

S = Standard inclusion.
O = Optional.
Canvas
Bimini Top/Top For Tower O
Bow & Cockpit Cover O

Cockpit
Cooler, 48 Qt Carry-On, under cockpit cushion S
Drink Holders, Stainless Steel (11) S
Glove Box, Port, with lockable cover S
Grab Handles, Black Urethane w/Stainless Steel Inserts S
Stereo, Fusion Satellite Ready AM/FM/USB w/Bluetooth & (4) Rockford Fosgate 6.5" Speakers S
Storage, In-Floor Ski w/Fiberglass Hatch & Dry Deck Liner S
Storage, Helm S
Storage, Transom Entry Locker S
Storage, Bow Seating S
Storage, Port and Starboard Dash, Accessible through bow backrests S
Storage, Aft Cockpit Seating and Engine Compartment S
Bow Filler Cushion O
Cockpit Inlay (SeaDek) (Brown/Gray. Requires Seadek Swim Platform Inlay) O
Stainless Steel Pull Up Cleats O
Stereo Remotes, Helm & Stern O
Swim Platform Inlay (SeaDek: Brown or Gray) O
Woven Flooring, Cockpit O

Electrical Systems
Battery Switch, Single, On/Off S
Battery Tray S
Weatherproof Electrical System w/Individual Circuit Protection S

Engine Compartment
Automatic Bilge Pump S
Fire Port S
Forced Air Ventilation S
Gel Coated Bilge & Engine Compartment S
Fuel Systems
Double Clamped Fuel Lines S

Helm
Fiberglass Dash with Upholstered Visor S
Instrumentation w/Fog Resistant Gauges (Digital) & Low Glare Night Lighting S
MP3 Adapter S
12V USB Outlet S
Steering, Power Assisted, Tilt w/Black Steering Wheel S
GPS/Chartpolotter/Sonar, w/Transducer (Raymarine AX7) O

Hull & Deck
Arctic Ice Hull Gelcoat with graphics S
Air Assist Chine S
Barrier Coat Vinylester S
Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate S
Cleats, Stainless Steel (6) S
Drain Plug, Brass Garboard S
Horn, Electric Flush Mount S
Lifetime Limited Hull Warranty S
Lights, Navigation, LED S
NMMA Certified S
Rub Rail, Heavy Duty w/Stainless Steel Insert S
Ski Tow, Stainless Steel S
Storage, Anchor-Bow Locker With Hatch S
Swim Platform, Integral S
Swim Platform Ladder, 4 step, Telescoping, Recessed with Fiberglass Hatch S
Thru Hulls, Stainless Steel Above Waterline S
Transhield Cover S
Walk-Thru at Transom S
Windshield, Onyx, Curved Tempered w/Walk-Thru S
Colored Hull Sides with Graphics (Other Than Arctic Ice) O
Colored Hull Bottom (Other Than Arctic Ice) O
Removable Ski Tow Pylon O
Wakeboard Tower Black (Hinged To Fold Down) O
Wakeboard Tower White (Hinged To Fold Down) O

Mechanical Systems
Battery Charger O
Depthsounder O
Fire Extinguishing System (Domestic Only) (Std. In EU Countries) O
Transom Tilt Switch O

Seating

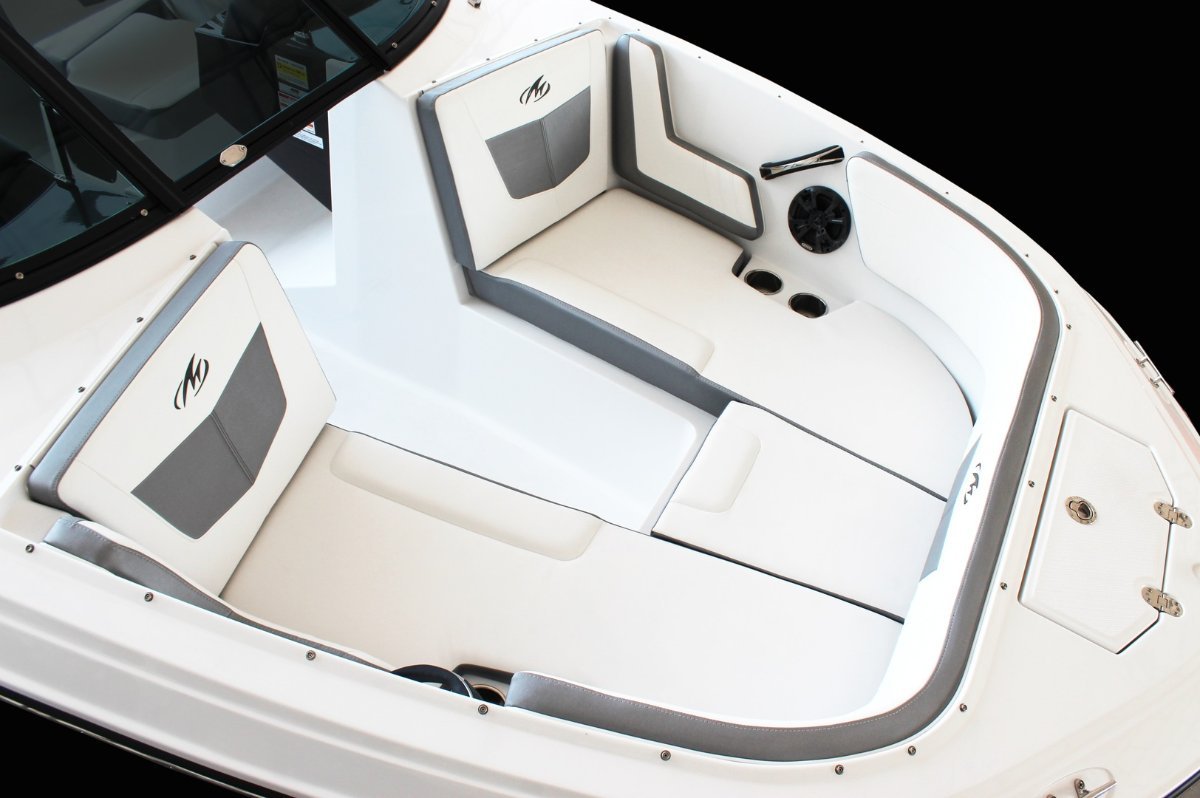

Bow Seating, Extra Wide with 3 Removable Cushions S
Bucket Seat, w/slider & Flip-Up Bolster, Starboard S
Port Companion seat with flip over backrest S
Sundeck w/Bench Seat & Storage S
Transom Walkway Filler with Seat Cushion S
Wrap around seating with removable filler cushions

Beam 8'6" 2.59M Width of hull at widest section including rubrail
Bridge Clearanance W/Tower 7'10" 2.39M Height from water to highest point on tower, normal load
Deadrise 19° 19° Angle of keel measured at transom
Draft - Stern Drive Down 37" 94.0CM Depth of hull to bottom of stern drive, trimmed down
Draft - Stern Drive Up 19" 48.3CM Depth of hull to lowest point, stern drive trimmed up
Dry Weight 3750LBS 1701KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Fuel Capacity 52GAL 196.8L Capacity of fuel tank in gallons/liters
LOA W/Swim Platform 21'10" 6.65M Length Overall, including add-on swim platform, not including bow rail or anchor roller
Max Persons W/ Gear Weight 2000LBS 900KG Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Max Persons Weight 1980LBS 750KG Maximum capacity of people that can be safely carried in pounds/kilograms
Max Power 350HP 261.8KW Maximum horsepower for safe operation
