2019 MONTEREY M20

AGILE AND NIMBLE
The power-packed M-20 boast sleek lines and fluid curves, and is loaded with amenities waiting to be embraced by both new and experienced boaters alike! Standard features include Monterey Boats patented Air Assist Chine, multiple stainless steel drink holders, an integral swim platform, along with multiple storage options. A stainless steel ski tow, telescoping and recessed swim ladder and sundeck come standard on the M-20, making it ideal for taking both you and your family anywhere you want to go!

S= Standard inclusion.
O= Optional
Canvas
Bimini Top/Top For Tower O
Bow & Cockpit Cover O
Cockpit
Cooler, 48 Qt Carry-On, under cockpit cushion S
Glove Box, Port-Molded with lockable cover S
Drink Holders, Stainless Steel (9) S
Grab Handles, Black Urethane w/Stainless Steel Inserts S
Stereo, Fusion Satellite Ready AM/FM/USB w/Bluetooth & (4) Rockford Fosgate 6.5" Speakers S
Storage, In-Floor Ski w/Fiberglass Hatch & Dry Deck Liner S
Storage, Helm S
Storage, Bow Seating S
Storage, Port and Starboard Dash, Accessible through bow backrests S
Storage, Aft Cockpit Seating and Engine Compartment S
Bow Filler Cushions O
Cockpit Inlay (SeaDek) (Brown/Gray. Requires Seadek Swim Platform Inlay) O
Stainless Steel Pull Up Cleats O
Stereo Remotes, Helm & Transom O
Swim Platform Inlay (SeaDek: Brown or Gray) O
Transom Walkway Filler with Seat Cushion O
Woven Flooring, Cockpit O
Electrical Systems
Battery Switch, Single, On/Off S
Battery Tray S
Weatherproof Electrical System w/Individual Circuit Protection S
Engine Compartment
Automatic Bilge Pump S
Fire Port S
Forced Air Ventilation w/Concealed Vents S
Gel Coated Bilge & Engine Compartment S
Fuel Systems
Double Clamped Fuel Lines S
Helm
Fiberglass Dash with Upholstered Visor S
Instrumentation w/Fog Resistant Gauges (Digital) & Low Glare Night Lighting S
MP3 Adapter S
12V USB Outlet S
Steering, Power Assisted, Tilt w/Black Steering Wheel S
GPS/Chartpolotter/Sonar, w/Transducer (Raymarine AX7) O
Hull & Deck
Arctic Ice Hull Gelcoat with graphics S
Air Assist Chine S
Barrier Coat Vinylester S
Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate S
Cleats, Stainless Steel (6) S
Drain Plug, Brass Garboard S
Horn, Electric Flush Mount S
Lifetime Limited Hull Warranty S
Lights, Navigation, LED S
NMMA Certified S
Rub Rail, Heavy Duty w/Stainless Steel Insert S
Ski Tow, Stainless Steel S
Storage, Anchor-Under Forward Bow Cushion S
Swim Platform, Integral S
Swim Platform Ladder, 4 step, Telescoping, Recessed with Fiberglass Hatch S
Thru Hulls, Stainless Steel Above Waterline S
Transhield Cover S
Walk-Thru at Transom S
Windshield, Onyx, Curved Tempered w/Walk-Thru S
Colored Hull Sides with Graphics (Other Than Arctic Ice) O
Colored Hull Bottom (Other Than Arctic Ice) O
Removable Ski Tow Pylon O
Wakeboard Tower Black (Hinged To Fold Down) O
Wakeboard Tower White (Hinged To Fold Down) O
Mechanical Systems
Depthsounder O
Fire Extinguishing System (Domestic Only) (Std. In EU Countries) O
Transom Tilt Switch O
Seating

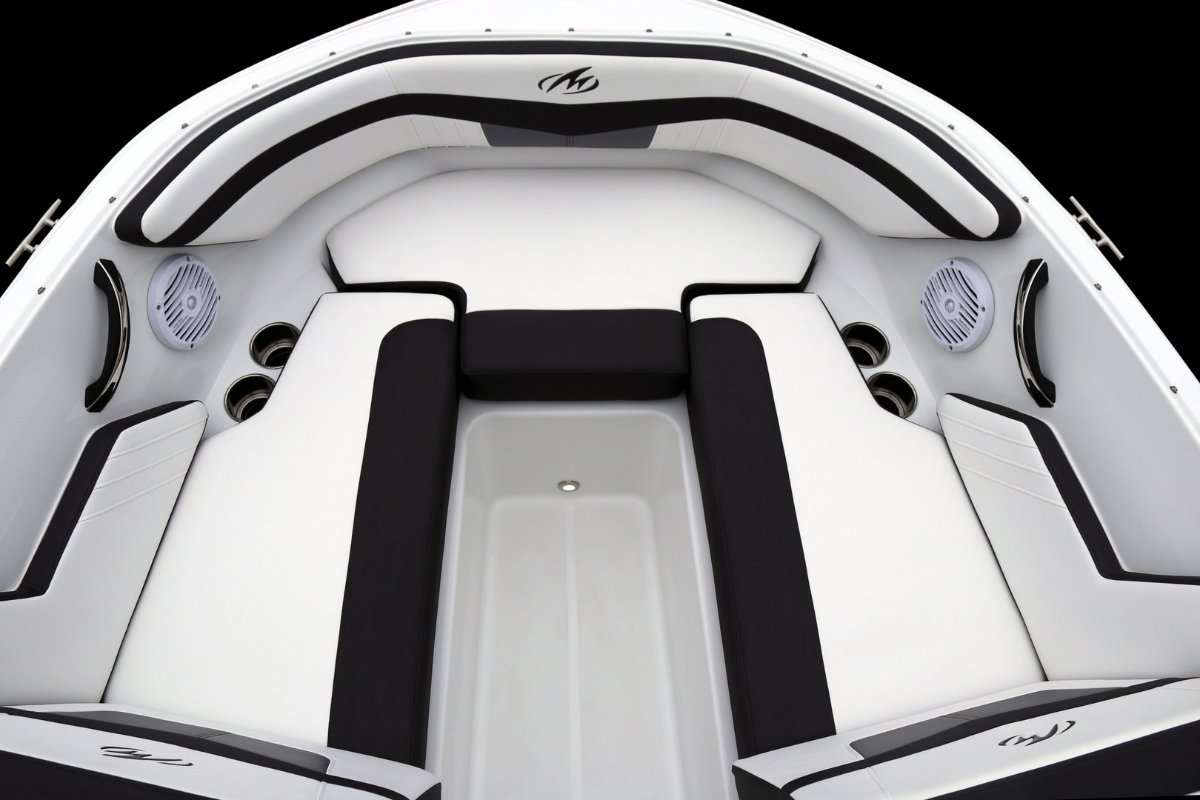

Bow Seating, extra wide with 3 removable cushions S
Bucket Seat, w/flip up bolster and manual slide, swivel, starboard S
Port Companion seat with flip over backrest converts to aft facing lounge S
Port Side Filler Cushion Transferable To Transom Entry S
Sundeck w/Bench Seat & Storage S
Wrap around seating, port side and aft cockpit

Beam 8'4" 2.54M W idth of hull at widest section including rubrail
Bridge Clearanance W/Tower 7'10" 2.4M Height from water to highest point on tower, normal load
Deadrise 19° 19° Angle of keel measured at transom
Draft - Stern Drive Down 37" 94.0CM Depth of hull to bottom of stern drive, trimmed down
Draft - Stern Drive Up 19" 48.3CM Depth of hull to lowest point, stern drive trimmed up
Dry Weight 3400LBS 1542KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Fuel Capacity 36GAL 136.3L Capacity of fuel tank in gallons/liters
LOA W/Swim Platform 19'10" 6.05M Length Overall, including add-on swim platform, not including bow rail or anchor roller
Max Persons W/ Gear Weight 1655LBS 825KG Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Max Persons Weight 1650LBS 675KG Maximum capacity of people that can be safely carried in pounds/kilograms
Max Power 280HP 209KW Maximum horsepower for safe operatio
